» Training case study: Vibration concern in U-tube reactor effluent cooler—beyond the initial screening

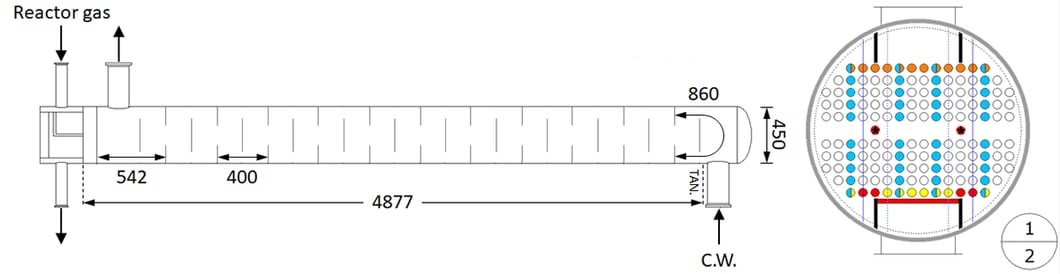

In this case study, a TEMA DEU heat exchanger design must cool high pressure reactor effluent from 180 °C to 40 °C. The corrosive reactor gas is assigned to the tube side, with cooling water on the shell side. The cooling water inlet nozzle is located at the U-bend. A circular impingement plate is specified in accordance with TEMA ρV 2 guidelines. The bundle has parallel-cut double-segmental baffles to meet the shellside pressure drop limit, and sealing devices are specified in the baffle overlap regions to mitigate flow bypassing.

Read more

Be sure to read the corresponding article, which reviews the differences between the Xist® and Xvib® vibration analysis methods for heat exchanger designs containing U-tube bundles.
